• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    GEO7X
    Place of origin:
    Mexico
    Memory:
    4G
    GPS positioning accuracy:
    Meter/centimeter
    Appearance mode:
    235x146x15 mm
    Waterproof function:
    IP67
    External power supply form:
    no
    Product Description

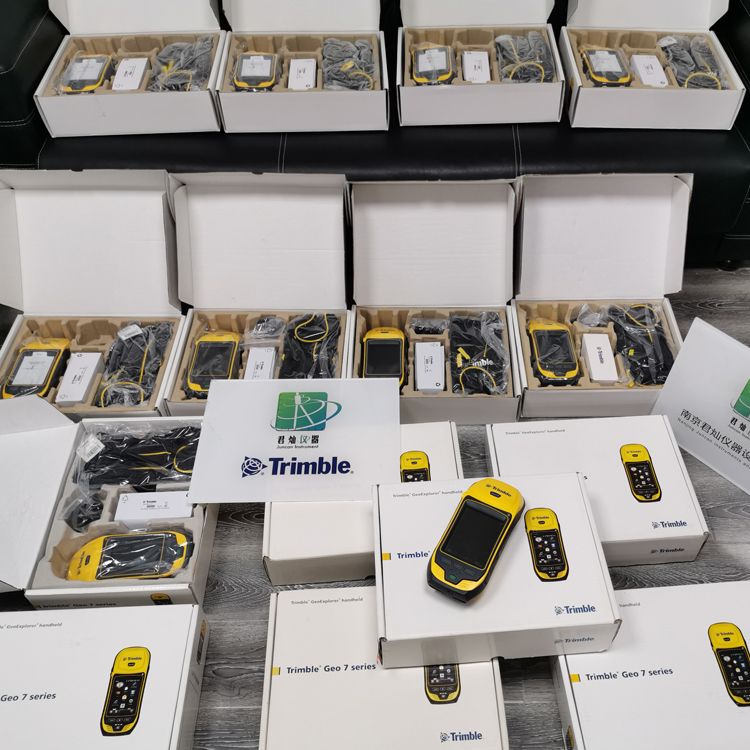

    Trimble GEO 7X GNSS receiver can be customized for export in many languages, including English (American), Chinese (Simplified), Chinese (Traditional), French, German, Italian, Japanese, Korean, Spanish, Portugal (Brazil) and Russian.
    Trimble Geo 7x

    GNSS
    characteristics    		 Channels 220 channels
    satellite signals

    GPS,GLONASS,BeiDou,Galileo,Qzss,SBAS



    Performance specifications

    Real-time Centimeter mode accuracy    		 Horizontal 1 cm + 1 ppm HRMS
    Vertical 1.5 cm + 2 ppm VRMS

    Postprocessed Centimeter mode accuracy    		 Horizontal 1 cm +1 ppm HRMS
    Vertical 1.5 cm + 1 ppm VRMS




    Physical    		 Size (HxWxD) 234 mm x 99 mm x 56 mm (9.2 in x 3.9 in x 2.2 in)
    Weight 1080 g with rangefinder
    Operating ambient temperature −4° to 140° F (−20° to 60° C)
    Storage temperature −22° to 158° F (−30° to 70° C)
    Relative humidity 95% non-condensing
    Water/dust ingress IP65
    Shock/Vibration MIL-STD 810G Method 516.6 Procedure I
    Drop 4 ft (1.22 m)
    OS Microsoft® Windows® Embedded Handheld version 6.5 Professional. English (U.S.), Chinese (Simplified), Chinese (Traditional), French, German, Italian, Japanese, Korean, Spanish, Portuguese (Brazil), Russian.
    CPU Texas Instruments DM3730 1 GHz + GPU


    Electrical    		 Type Rechargeable, removable Li-ion
    Li-ion battery capacity 11.1V 2,500 mAH
    Charge time < 4 hours (typical)







    Communications    		 Wifi yes
    high speed USB yes
    GSM/GPRS/EDGE modem yes
    Bluetooth V2.0+EDR yes
    UMTS/HSPA+ yes
    CDMA/EV-DO Rev. A yes
    Floodlight yes


    Protocols    		 RTCM2.x/RTCM3.x/CMR+/CMRx yes
    NMEA or Trimble proprietary yes
    NMEA, TSIP2 yes

    Data Storage    		 internal memory 4G
    as a USB external hard drive yes
