Handheld GPS data collector

Trimble Juno5D handheld GPS locator is a very flexible tool for asset management and GIS data updating. The Trimble Juno5D integrates the convenience and durability of a smartphone with the features and software you need.

Trimble Juno5D Mobile GIS solution with integrated smartphone enables you to work more efficiently

Your team gets the job done better when they have efficient and intelligent tools. The new Trimble Juno 5D handset has features similar to smartphones. Compatible with GIS workflows, Juno 5D is a trusted intelligent solution for standard patrol and asset management.

Ideal for GIS asset management and data maintenance projects in the field, all integrated into a convenient, rugged platform: GNSS with high sensitivity, Windows Embedded Handheld or Android operating systems, Office applications, cameras, and cellular modems. Flexibility to link communications, send and receive voice calls and data with optional built-in communications modules, keeping your team productive, informed, and engaged.

Trimble TerraSync for workflow works with GPS Pathfinder Office software so you can trust the data you collect. It looks like a smartphone, but the Juno 5D is a handset that supports all business. Rugged and IP65 protection, the large screen makes it easy to view data or photos even in direct sunlight. This is a team you can trust to perform well even in harsh conditions.

Trimble Juno5D integrates the convenience and ruggedness of a smartphone with the features and software you need. Trimble Juno5D is a very flexible tool for asset management and GIS data updates.

product feature

Familiar and easy to use, with the appearance of a smartphone

Works with software to accommodate GIS workflows

A large display readable in sunlight

Close to office work-with built-in communication

Rugged and durable, able to work in all conditions

Technical specifications:

standard features

Integrated 3.75G modem supporting SMS, voice and data services (JUNO 5D)

8 megapixel camera with geolocation markers and dual flash

Bluetooth 2.1 with enhanced transmission rates

WI-FI 802.11 b/g/n

4.3-inch Gorilla Glass Screen with Multi-Touch Support

Long-lasting, rechargeable lithium ion battery

800Mhz CPU（JUNO 5B）

1GHz CPU （JUNO 5D）

256 MB RAM (JUNO 5B) and 512 MB RAM (JUNO 5D)

8G internal storage (JUNO 5B) and 16G internal storage (JUNO 5D)

Support 32G extended storage

Integrated microphone and speaker

Windows embedded OS or Android 2.3.4 OS, supports multiple languages

GNSS receivers and antennas with high accuracy and productivity

Standard Software (WEHH)

Office 2010 （word、excel、outlook、powerpoint、IE6）

Trimble Satviewer

Trimble CellStart (WWAN configurator)

Dial SMS program (JUNO 5D)

Camera control software

Calculators and calendars

Windows Player

Task Manager

Flash control software

PDF reader

 Standard software (Android)

Trimble Outdoors Navigator

mail (邮局传递的函件和包裹的统称)

video player

Dial and text

flash control program

browser

camera control program

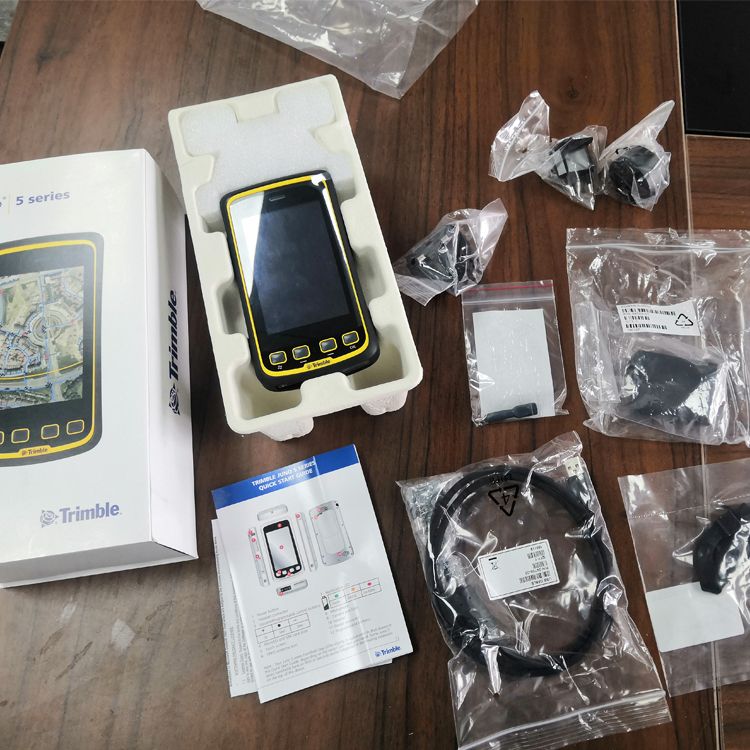

standard fittings

charger

hand strap

quick tour

USB cable

Ultra Clear Film

optional accessories

9 pin serial adapter

USB Host Adapter

stylus

external battery

car charger

Touch Screen Gloves

headset

protective film

External GPS antenna

technical specifications

size: 15.5 8.2 2.5cm

Weight: 400g

Processor: 800MHz (5B) H and 1GHz (5D), Texas Instruments DM3730

256M memory and 8G storage (5B)

512 MB memory and 16 GB storage (5D)

Battery: 3.7V 12.2WH

system parameter

Operating temperature: -30℃ to 60℃

Storage temperature: -40℃ to 70℃

Humidity: 90% relative humidity, based on 30 ° C to 60 ° C

Three protection: IP65

Drop: 1.22 m

Micro SD expansion slot

10.9cm/4.3 inch display, 480*800 resolution

Built-in speaker and microphone and recording player

USB 2.0 Master-Slave Mode

Bluetooth 2.1 and Enhanced Data Transmission

3G band: 800/850/1900/2100

2G band: 850/900/1800/1900

Camera: 8 megapixels with geotags and dual flash

GPS: 50 channels (real-time code, post-processing carrier and code)

Differential sources: RTCM 2.3 and SBAS

Update rate: 1Hz

Protocols: NMEA and UBX

Accuracy: real-time and post-processing 2-4 m
